Useful for fast and easy locating of the refrence point in axial direction of the machine spindle. When the setter is positioned on to the workpiece and the tool is moved to the spring based probe surface till the zero position is reached, the distance between the tool tip to workpiece is 50mm.
OPERATIONAL INSTRUCTION

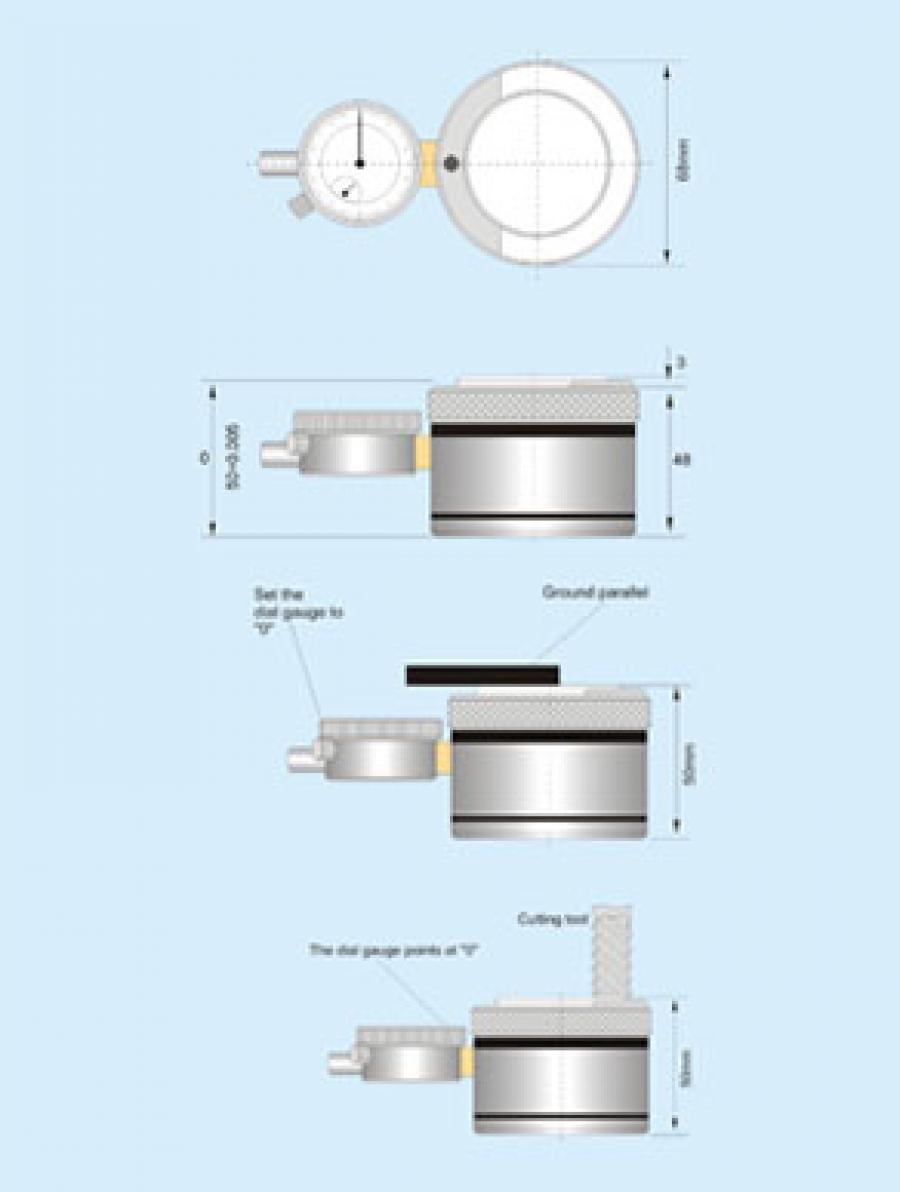

Calibrate the Z-axis-setter by putting a parallel on setter and press it against on the pre-groundsurface and set the dial gauge at "0"
Measuring: put the setter on machine table or workpiece reference surface.
Move spindle to bring cutting tool to touch measuring surface and read the dial gauge carefully.
