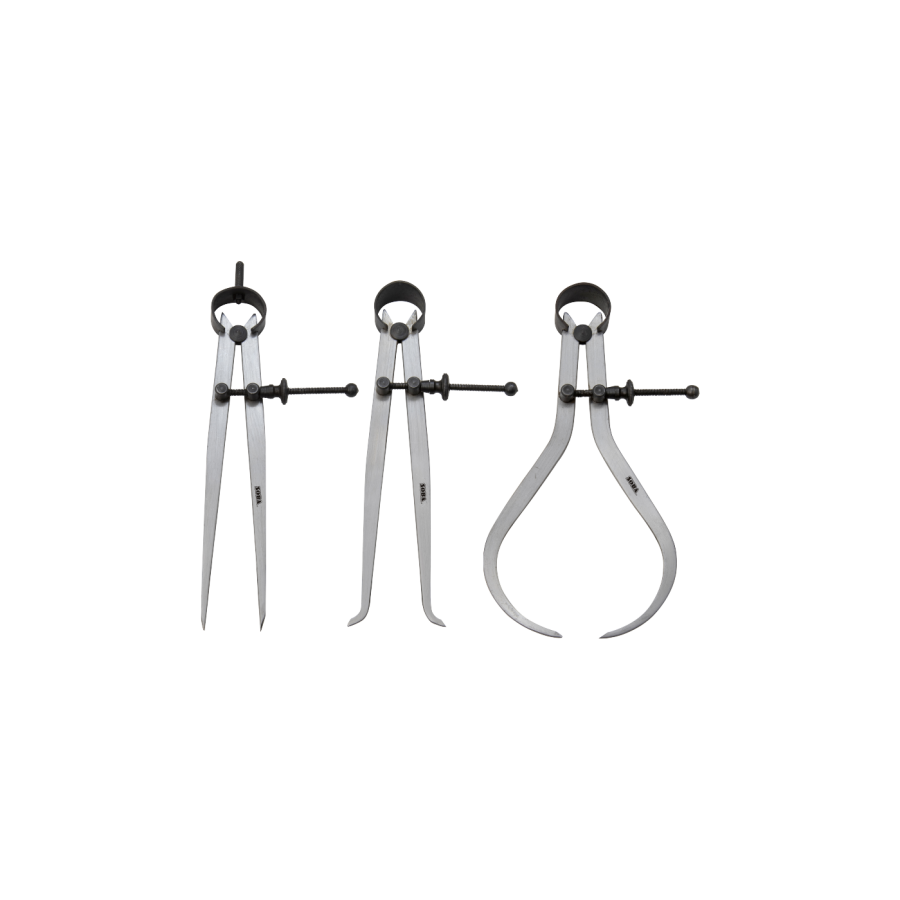

Spring Caliper Regular

Add to Enquiry Bag

Enquire Now

Features

Used for checking dimensions with a rule, vernier or micrometer and transferring measurements carbon steel legs with ground tips hardened to 35 HRC Chrome Plated fittings and Black finish.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Size Inside
Ordring		 Outside
Ordring		 Divider
Ordring		 WT.
INCH MM No No No Kg
3 75 155000 155005 155010 0.040
4 100 155015 155020 155025 0.040
6 150 155030 155035 155040 0.060
8 200 155045 155050 155055 0.100
10 250 155060 155065 155070 .0150
12 300 155075 155080 155085 0.150
16 400 155090 155095 155096 0.500
18 450 155105 155110 155115 0.550
20 500 155120 155125 155130 0.700
22 550 155135 155140 155145 0.750
24 600 155150 155155 155160 0.750
30 750 155165 155170 155175 1.600
36 900 155180 155185 155190 2.100
48 1200 155195 155200 155205 3.100
