SOBA

Add to Enquiry Bag

Enquire Now

We offer a selection of parting tool holders suitable for Mini Lathes, Standard lathe machines and CNC Turning centers. Made of case Hardened Steel. All Parting tool holders are uniformly machined and precision ground from the top and bottom. Positive locking device ensures rapid and powerful clamping of the cut off blade. Cut Off Blades: The blades are manufactured from High speed steel, Cobalt 5%. Hardened and ground all over to ensure maximum cutting efficiency.

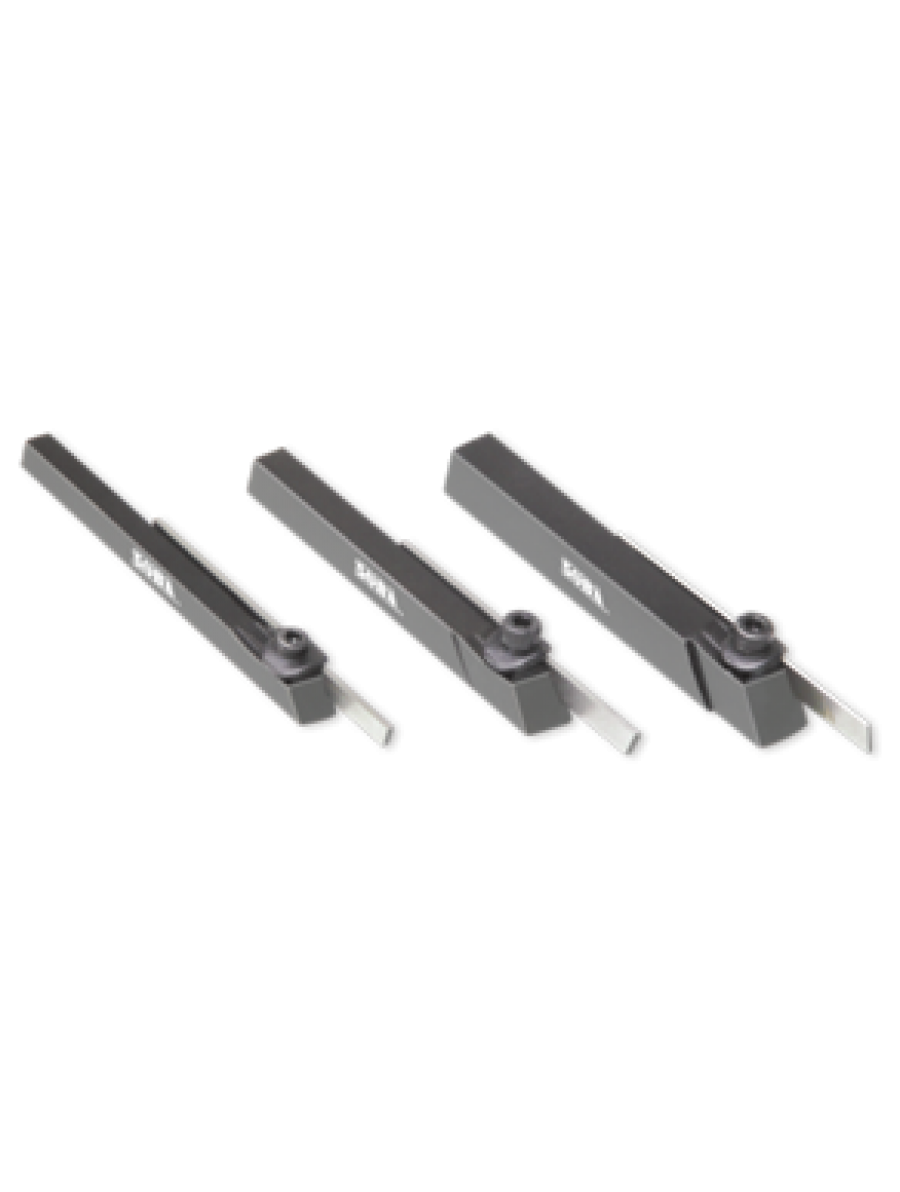

Parting Tool Holders

Ordering No.	Shank A Width B Length L	Shank A Width B Length L	HSS / Cobalt Cut off Blade Size
	Inch	mm	Inch	mm
392400	1/4 x 1/4 x 3.3/16	6 x 6 x 80	1/16 x 3/16 x 2.1/2	1.5 x 4.5 x 63
392410	5/16 x 5/16 x 3.3/16	8 x 8 x 80	1/16 x 7/32 x 2.1/2	1.5 x 5.5 x 63
392420	3/8 x 3/8 x 3.3/16	10 x 10 x 80	1/16 x 7/32 x 2.1/2	1.5 x 5.5 x 63
