MICRO BORING HEADS 171180

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTIC

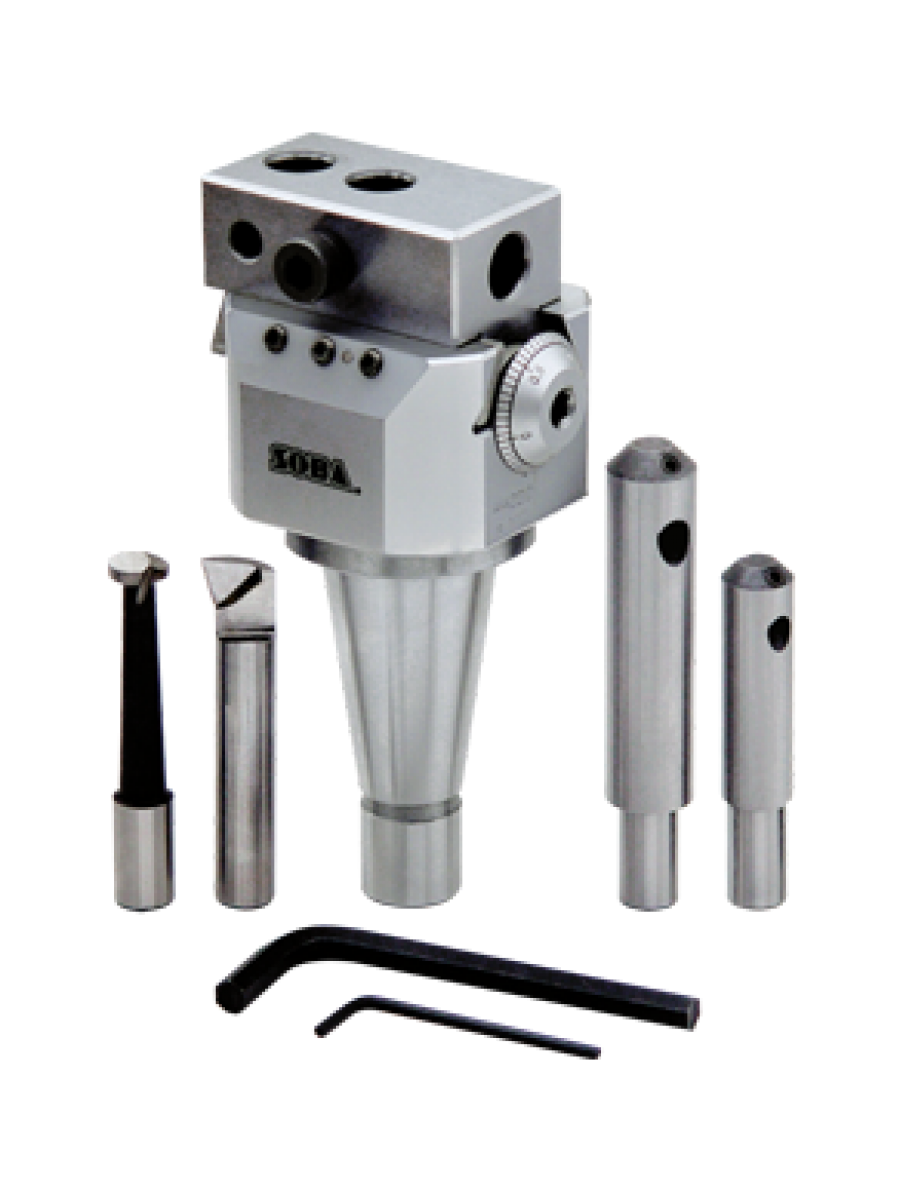

  • The Complete Set Consists of the following
  • Boring head 80mm
  • ISO40 Shank
  • 16mm HSS Boring Tool
  • 16mm Carbide Brazed Boring Tool
  • Fly Cutter 62mm overall length
  • 45° Hole to Hold 6mm HSS Round Tool Bit
  • Fly Cutter 93mm overall length
  • 45° Hole to Hold 8mm HSS Round Tool Bit
  • 2 pc Hex Keys

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering
No.		 Boring
Head Dia.		 Overall
Length		 Boring
Bar Hole Ø		 Centre
Distance
Between Hole		 Cross Hole
Size Ø		 Slide Radial
Travel		 Minimum
Bore		 Maximum
Bore		 Mounting
Thread		 Net.Weight
Kg.
mm mm mm mm mm mm mm mm mm
171180 80 40 16 40 20 40 16 135 20x1.5 4.700
