HIGH PRECISION LIVE CENTERS FOR CNC LATHES HEAD LIVE CENTER

Add to Enquiry Bag

Enquire Now

Features

  • MULTI POINT

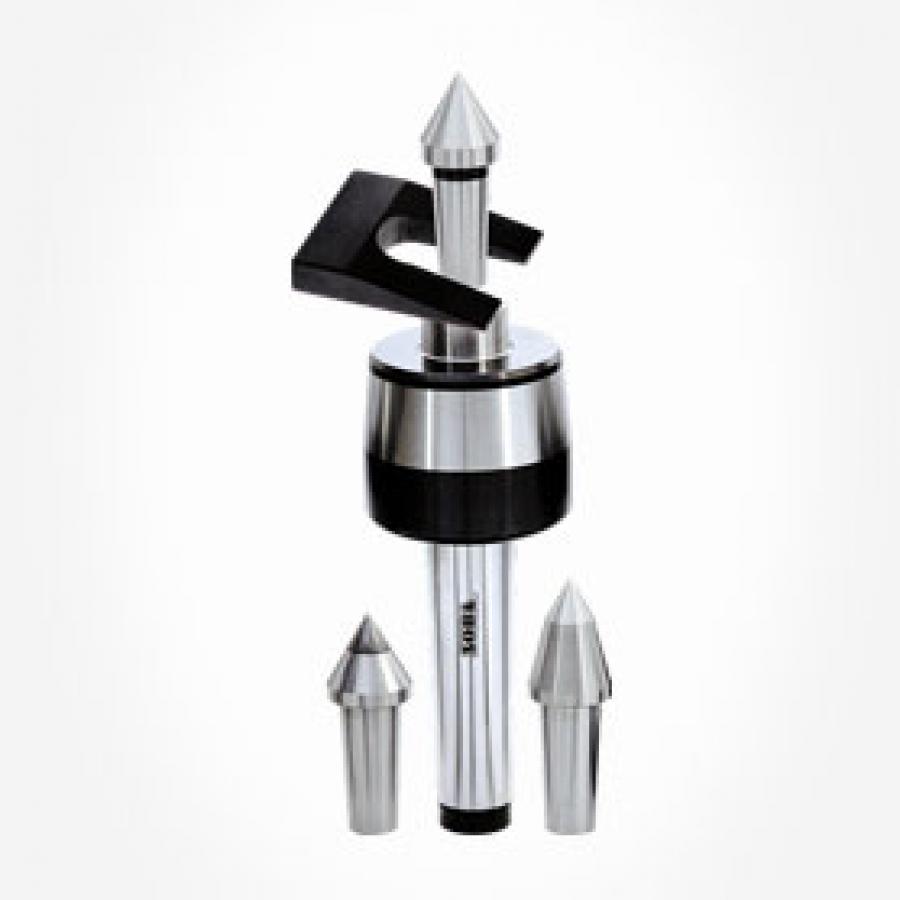

  • This live center is available in two styles , one with a standard body and three interchangeable tips consisting of a tool steel point of 60 degree, a carbide point of 60 degree & a 60 degree extended point. The second type has a low body with same tips as the standard body live center. This center is useful in multiple applications as the tips are interchangeable. Supplied with an extractor for changing points. Accuracy of the center is maintained even after frequent changing of the tips in view of proven assembly design.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

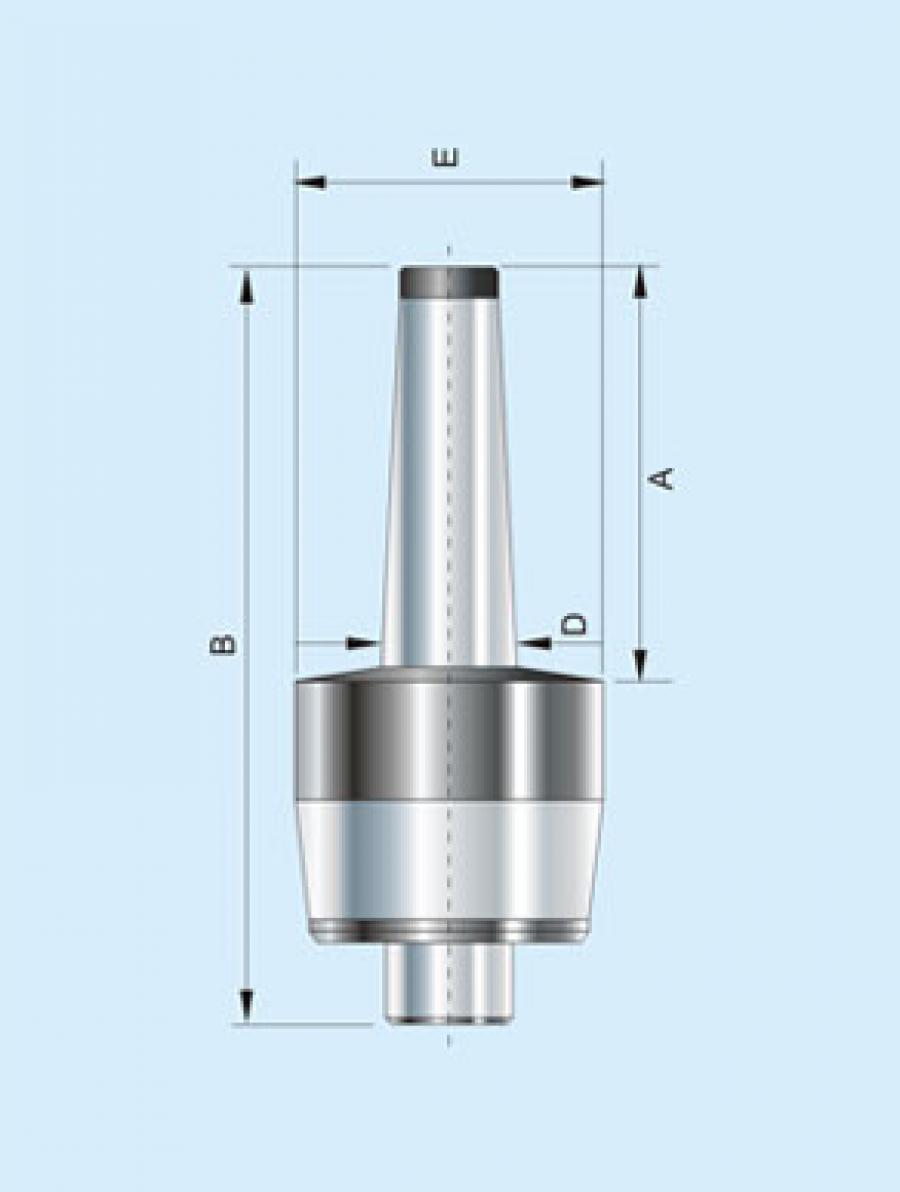

Ordering No. Taper A B DØ EØ Max RPM Work Pc
Weight
T.I.R.
201700 MT3 86 125 22 52 3500 150 0.01
201710 MT4 109 150 25 60 3500 250 0.01
201720 MT5 136 175 40 70 2500 650 0.01
