HIGH PRECISION LIVE CENTERS FOR CNC LATHES EXTENDED POINT

Add to Enquiry Bag

Enquire Now

Features

  • EXTENDED POINT
  • High precision live centers with extended point angle of 60 degree with double angular contact bearing, thrust bearing and needle roller bearing at the end of point in shank. Concentricity within 0.005mm. Bearings are protected by a neoprene seal for longer life. The extended point gives extra tool clearance for safe approach of the tool holder and lathe tools which is often needed on CNC lathes.

Need Expert Advice
-Call us-

+ 91 11 43118888

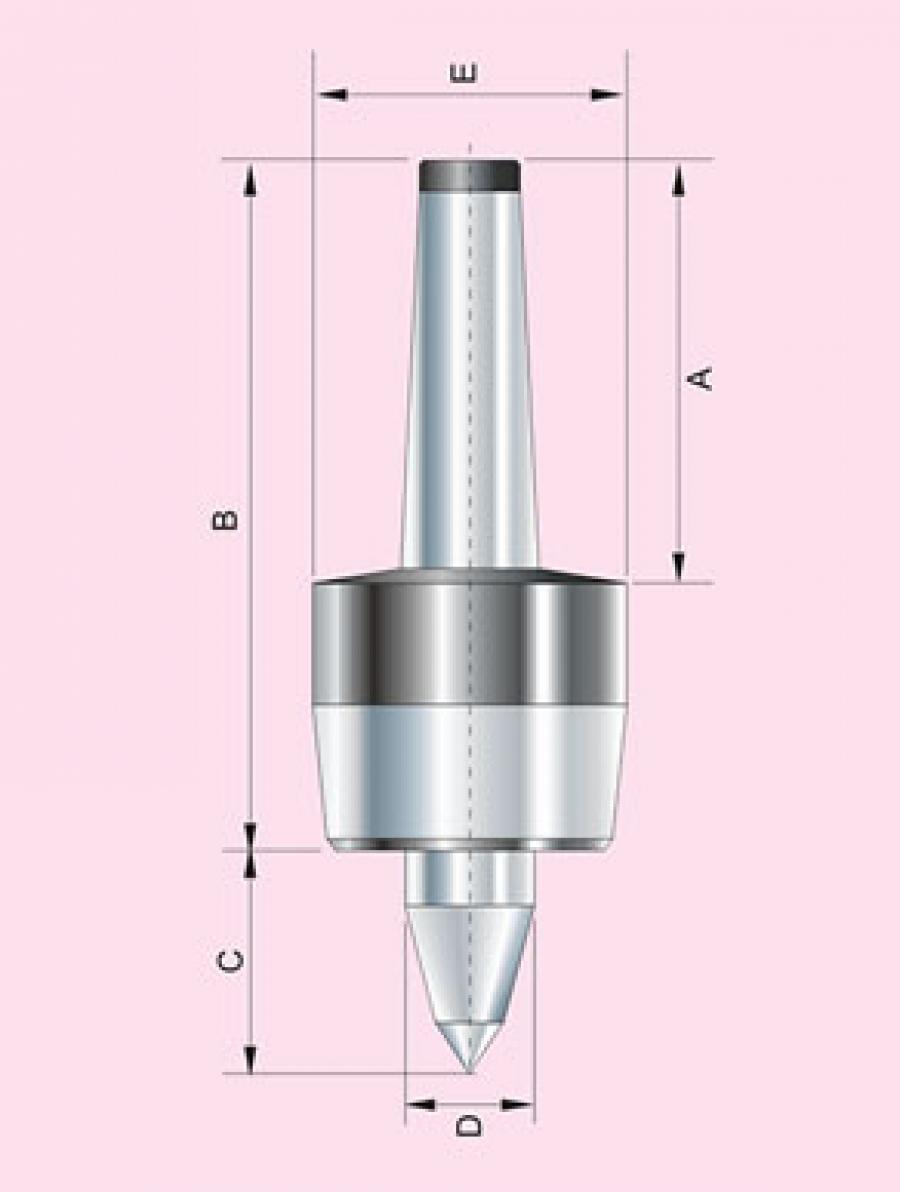

Technical Data

Ordering No. Taper A
mm
B
mm
C
mm

mm
E
mmØ
Max RPM Work Pc
Weight
T.I.R. Wt. Kg.
201570 MT2 69 110 34 21 45 3000 200 0.005 0.5
201575 MT3 86 125 47 24 52 3500 350 0.005 0.8
201580 MT4 109 150 53 30 60 3500 500 0.005 2.3
201585 MT5 136 175 65 34 70 2500 700 0.005 4.7
