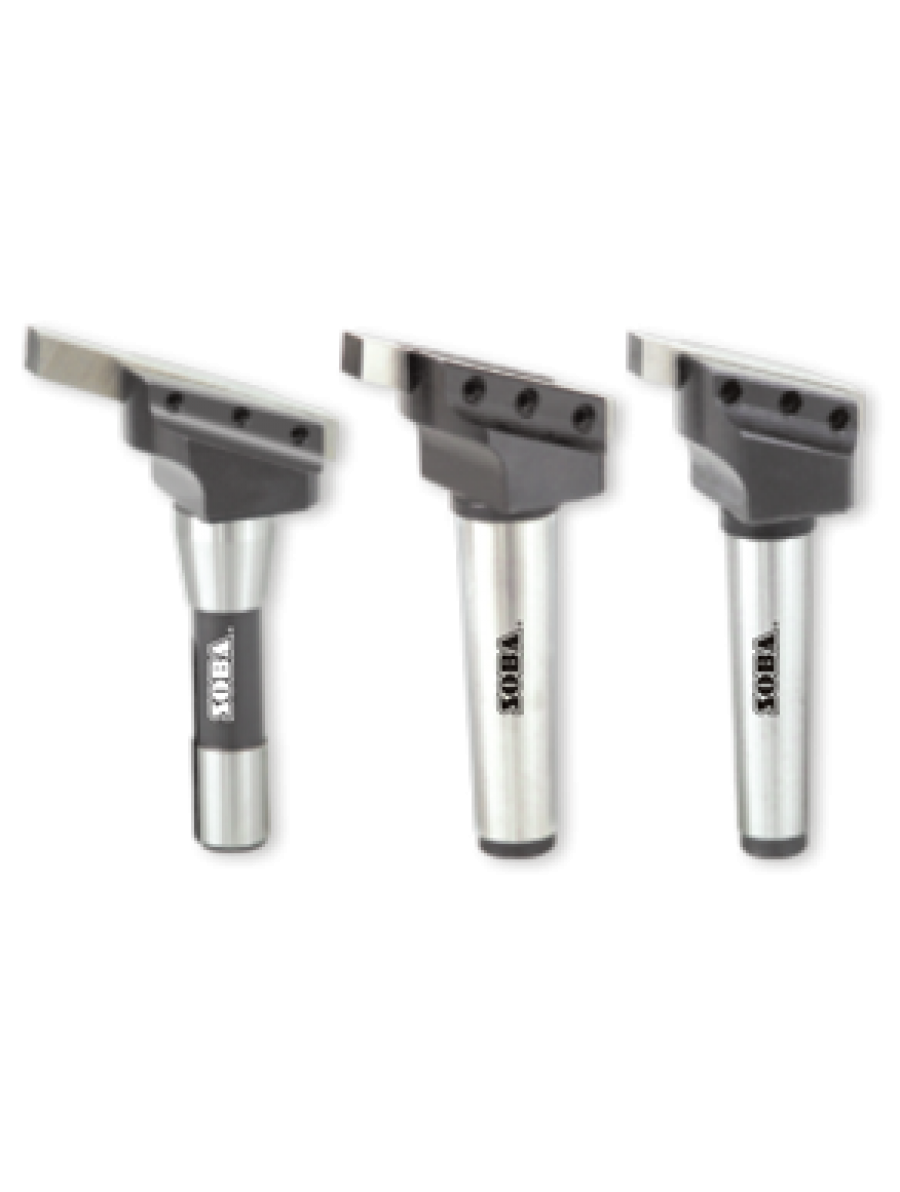

FLY CUTTING HOLDER

Add to Enquiry Bag

Enquire Now

Features

  • Made of steel and hardened with precision ground shanks. Our fly cutter holders are counterbalanced to give you smoother finishes. Can be used in milling operations and can also be incorporated for use with boring heads.
  • Set of 3pc. Head Dia 3/4”, 1.1/8”, 1.1/2”, and Shank 1/2” or 12mm
  • (Please Specify when Order.)
  • Comes in with wooden stand.
  • Order No. 394150
  • set of 3pc Head Dia 1.1/2”, 2”, 2.1/2” and shank size 3/4” fitted in wooden stand.
  • Order No. 394180

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Head Dia Shank Dia Tool Bit Size
Inch mm Inch mm Inch mm
393950 3/4 19 1/2 12 3/16 5
393955 1.1/8 28 1/2 12 1/4 6
393960 1.1/2 38 1/2 12 5/16 8
393965 1.1/4 32 3/4 19 5/16 8
393970 1.1/2 38 3/4 19 5/16 8
393975 2 50 3/4 19 5/16 8
393980 2.1/2 63 3/4 19 5/16 8
393985 2.1/2 63 3/4 19 3/8 9.5
393990 2.1/2 63 R8 R8 3/8 8
393995 2 50 R8 R8 5/16 8
394100 2 50 MT2 MT2 5/16 8
394105 2 50 MT3 MT3 5/16 8
