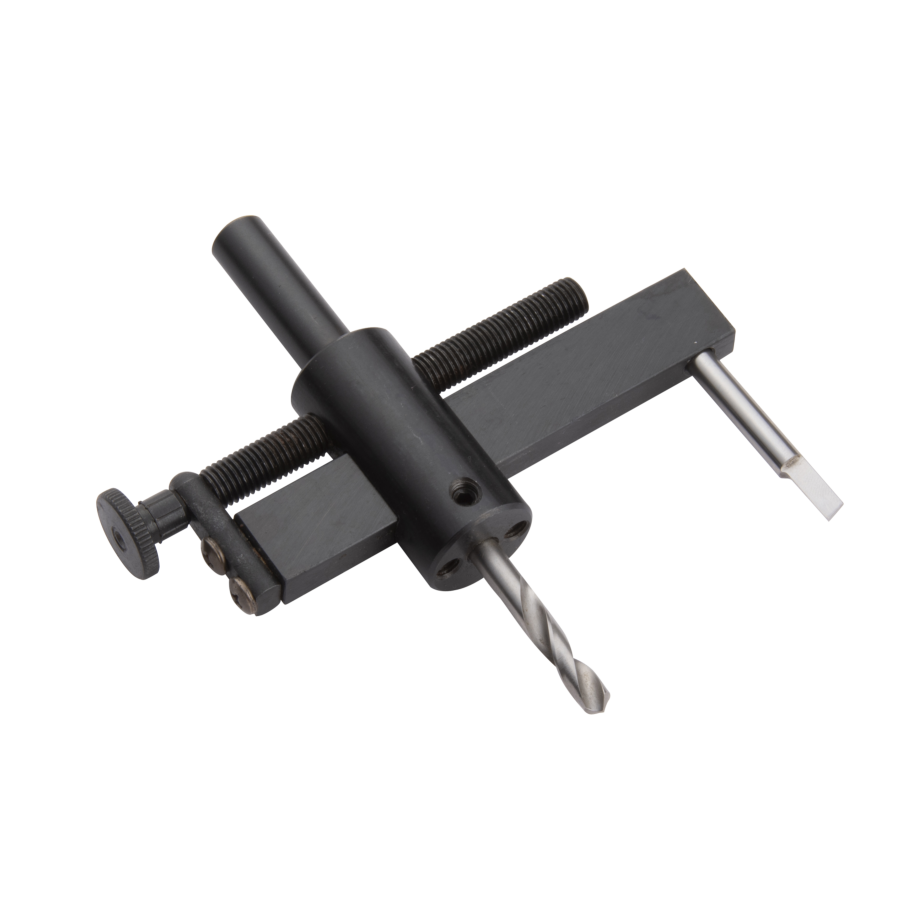

Enquire NowThe circle cutter produces precision circles in Sheet Metal, Brass, Wood, Plastic Hard Boards, Aluminium and soft steel. The High Speed Steel Cutting Bits and Centering Points are replaceable. The circle cutters are adjustable for cutting different diameter circles. It is important to allow use of the optimum cutting speed, and to reduce wear on the tool edge.
| Ordering No. | Max. Cutting Size | Shank Size | Weight | ||
|---|---|---|---|---|---|
| Inch | mm | Inch | mm | ||
| 230030 | 4.50 | 114 | 1/2" | 12 | 0.400 |
| 230035 | 6.50 | 165 | 1/2" | 12 | 0.450 |
| 230040 | 8.50 | 215 | 1/2" | 12 | 0.600 |
| 230042 | 10.50 | 265 | 1/2" | 12 | 0.700 |
| 230045 | 4.50 | 114 | MT-2 | 0.500 | |
| 230050 | 6.50 | 165 | MT-2 | 0.600 | |
| 230055 | 8.50 | 215 | MT-3 | 0.650 | |
