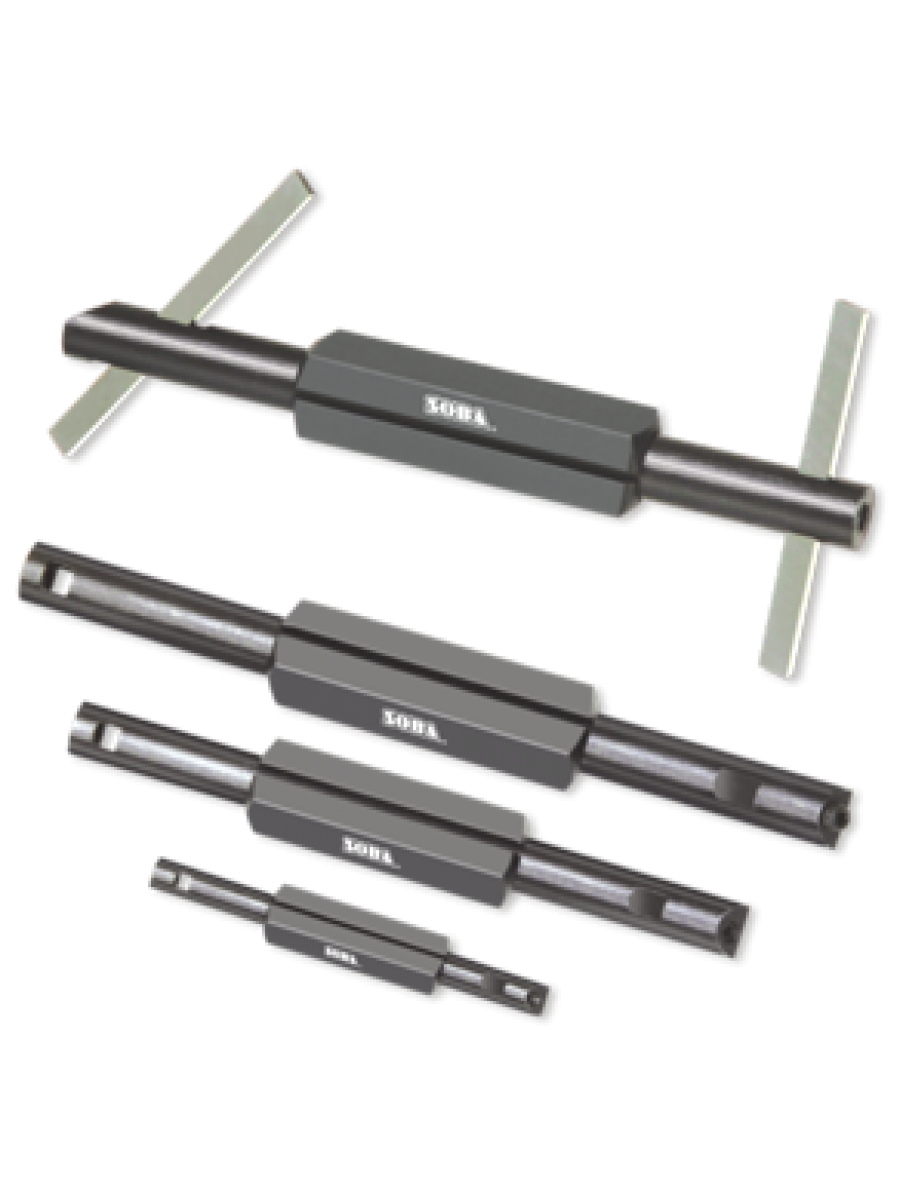

BORING BAR WITH HOLDERS

Add to Enquiry Bag

Enquire Now

Features

  • Boring Bars
  • We offer boring bars in various sizes to hold round High speed steel tool bits, and square tool bits. The boring bars are made of steel uniformly Precision ground, double ended with 45° & 90° angle. In our range we also have a 45° single ended and a 90° single end. Boring bars are available with holders as well as without the holders. Supplied with the allen keys.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Boring Bar Dia Boring Bar Length Holder Square Length Holder Square Size Tool Bit Size
Inch mm Inch mm Inch mm Inch mm Inch mm
393500 3/8 9.5 4.1/2 112 2.1/8 54 1/2 x1/2 12.7 x 12 1/8 3
393505 7/16 11 5.1/4 132 2.1/2 63 5/8 x 5/8 16 x 16 3/16 5
393510 9/16 14 6.3/4 170 3 75 3/4 x 3/4 19 x 19 1/4 6.35
393515 3/4 19 9 225 3.3/4 95 1 x 1 25 x 25 5/16 8
393520 7/8 22 11.1/2 288 4.1/2 112 1.1/8 x 1.1/8 28 x 28 3/8 9.5
393525 1.1/8 28 14 350 5 125 1.3/8 x 1.3/8 35 x 35 7/16 11
393530 1.1/4 32 15 375 5.1/4 132 1.5/8 x 1/58 41 x 41 1/2 12.7
393535 1.3/8 35 16 400 6 150 1.3/4 x 1.3/4 45 x 45 5/8 16
393540 1.1/2 38 18 450 6 150 2 x 2 50 x 50 3/4 19
393545 2 50 20 500 7 175 3 x 3 75 x 75 1 25
