AUTOMATIC BORING CUM FACING HEAD TOOL EXTENSION

Add to Enquiry Bag

Enquire Now

Features

  • TOOL EXTENSION:-

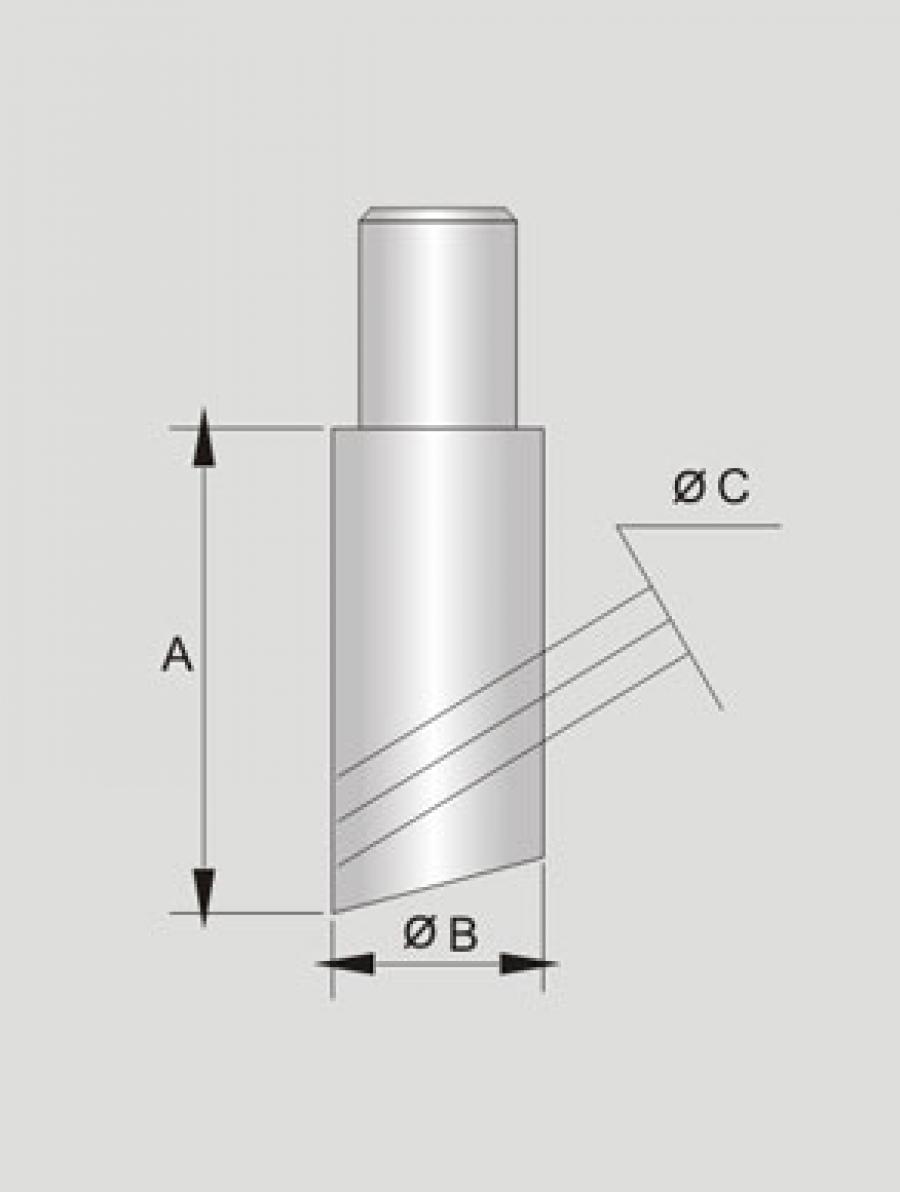

  • According to the supply or the option chosen, refer to the table on page A 14 concerning the characteristics. The same size boring heads of both types use the tool extensions whose dimensions figure below. It is also possible for us to supply special tool extensions as well as boring bars which hold the tool extensions.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Size of
the heads
Tool No. Length A B C +0.0
Inch mm Inch mm Inch mm
60 Metric 018 short 3-3/8 85 3/4 20 5/16 8.10
90 Metric 604 short 1-3/4 45 1-5/32 29 3/8 10.10
90 Metric 605 medium 3 75 1-5/32 29 3/8 10.10
90 Metric 606 long 4-3/16 105 1-5/32 29 3/8 10.10
