Adjustable Squares

Add to Enquiry Bag

Enquire Now

Features

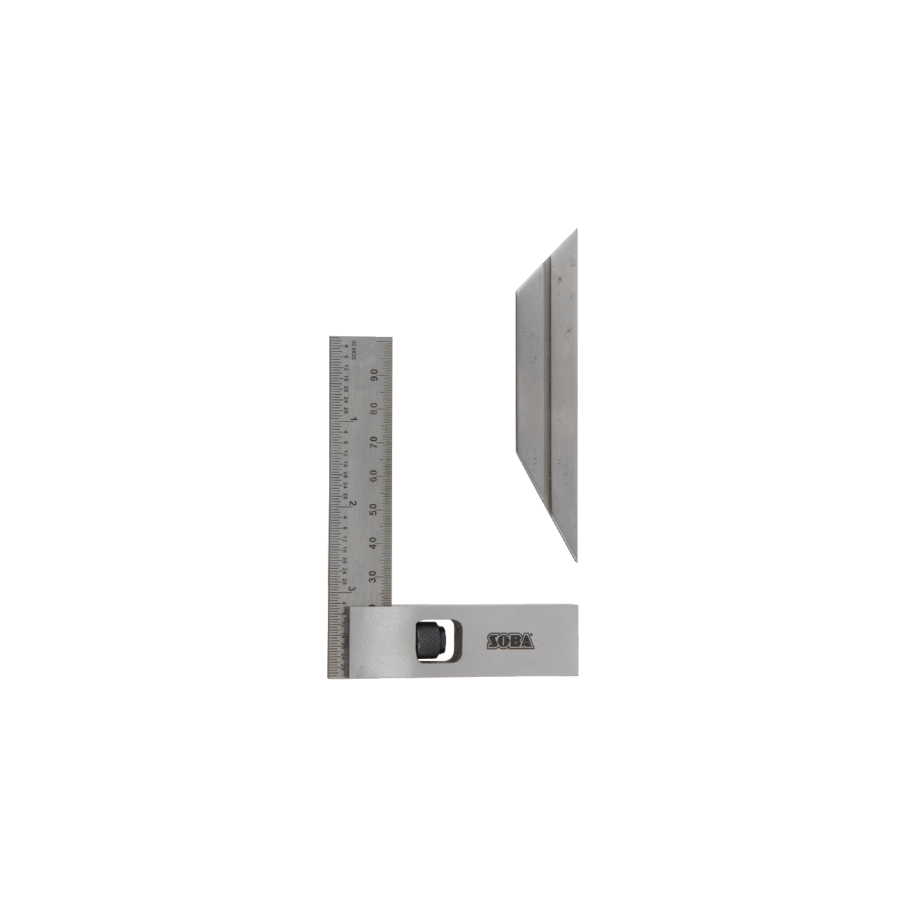

An incredibly handy square designed for tool and die makers as well as woodworking. Hardened precision ground blade and stock. The adjustable blade allows wider range of applications for checking squareness in places where conventional squares cannot be used. This precision square comes complete with a straight blade, steel rule graduated both in metric and imperial, The blade locks securely in any position from full left to full right by an easy to operate knurled nut on the stock.

Need Expert Advice
-Call us-

+ 91 11 43118888

Technical Data

Ordering No. Stock (LxWxH) Blade (LxWxH) Squareness Flatness/Parallelism WT.
  INCH MM INCH MM INCH MM Stock Faces Blade Edges Kg
INCH MM INCH MM
150700 2x3/4x3/8 70x19x9 4x3/4x1/6 100x19x1.6 .0004 0.010 .0001 0.003 .0002 0.005 0.250
150710 3-3/4x1x1/2 95x25x1.6 6x1x1/16 150x25x1.6 .0004 0.010 .0001 0.003 .0002 0.005 0.400
